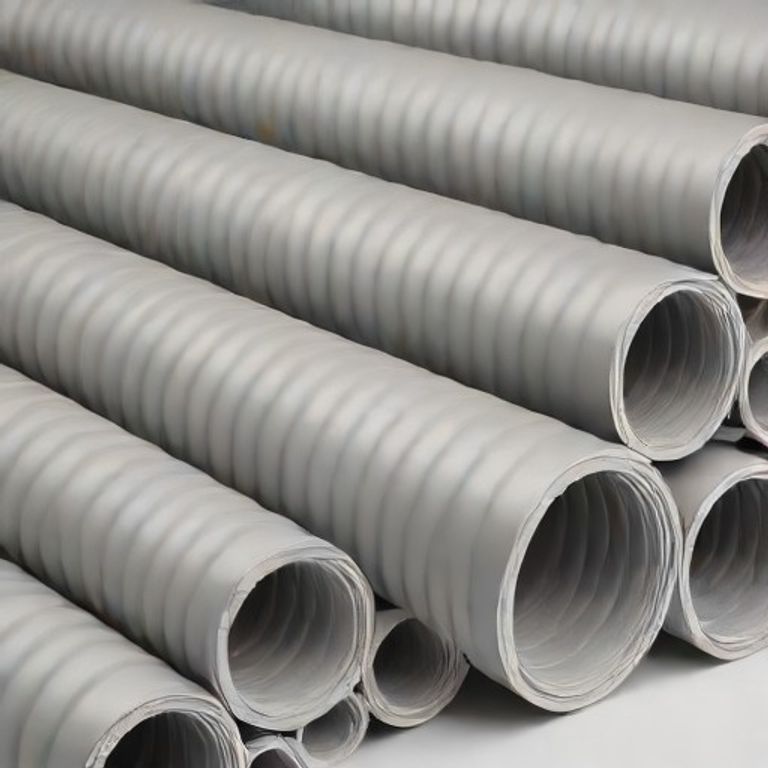

FABRIC DUCT HOSE

Application:For welding gas and Dust extraction, Air Conditioning. Ventilation Technology and Aircraft & Military Construction

Material:PVC Coated polyester Fabric

Standard Color:Grey

Temp. Range:-20°C Approx. to + 80°C Approx.

Size:15mm to 600mm

Standard Length:10mtr

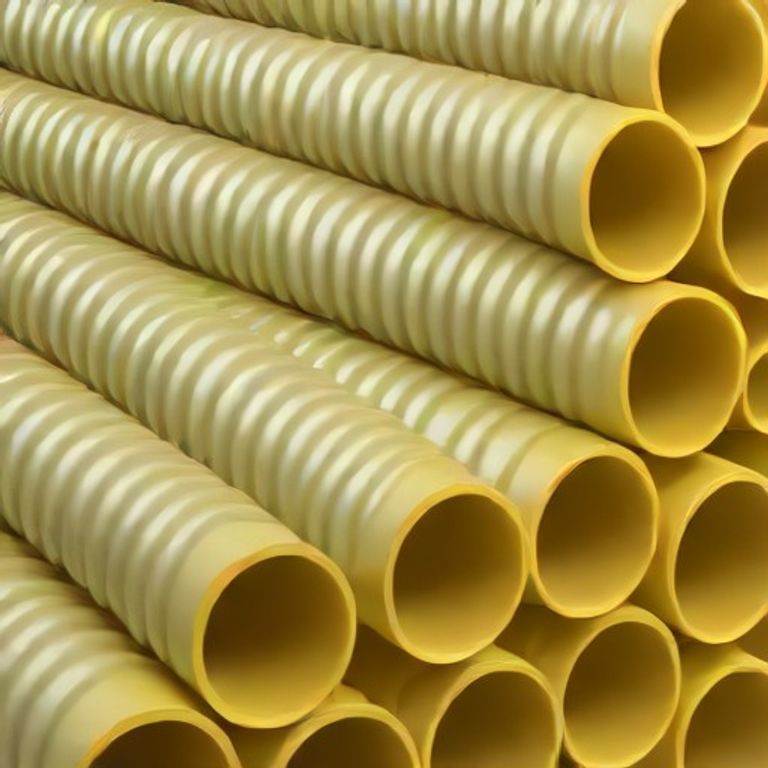

PVC FLEXIBLE YELLOW AIR DUCT HOSE

Application:Ideal for Ventilation Duct, Air Conditioning, Ventilation of Fumes, Removal of Dust

Material:High Density PVC Coated Polyester Fabric with PVC and Steel Wire

Standard Color:Yellow

Temp. Range:-20°C Approx. to + 80°C Approx.

Size:150mm to 600mm

Standard Length:10mtr

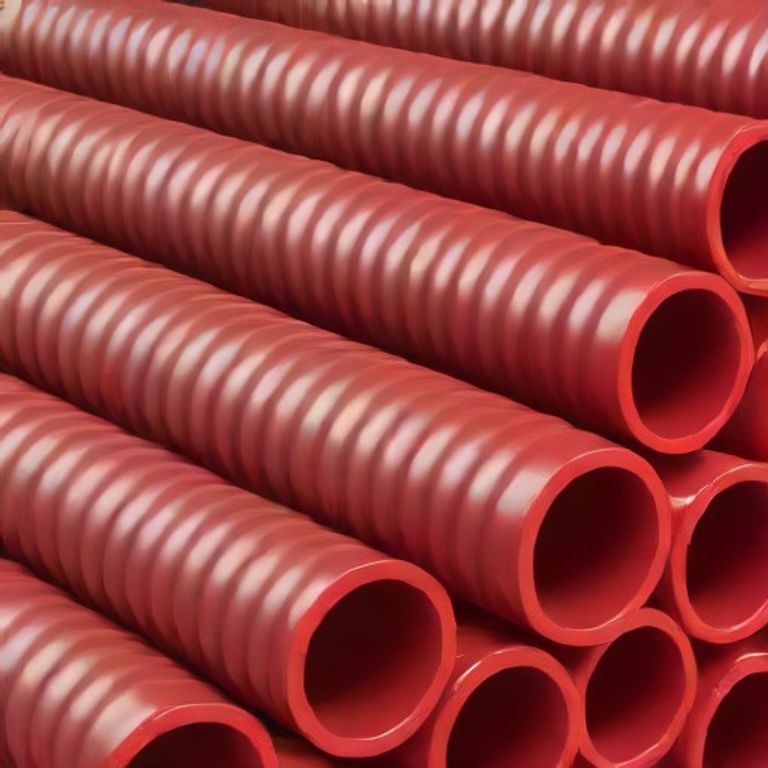

SILICON HIGH TEMPERATURE HOSE

Application:For Granulate dryers in the plastic Industries For Printing Machines, Blowers and Compressors Use as conductor of Hot and Cold Air

Material:Silicon Coated Glass Fabric with Spring Steel Wire and Special Yarn

Standard Color:Red

Temp. Range:-72°C Approx. to + 260°C Approx.

Size:25mm to 305mm

Standard Length:4 Mtr Long

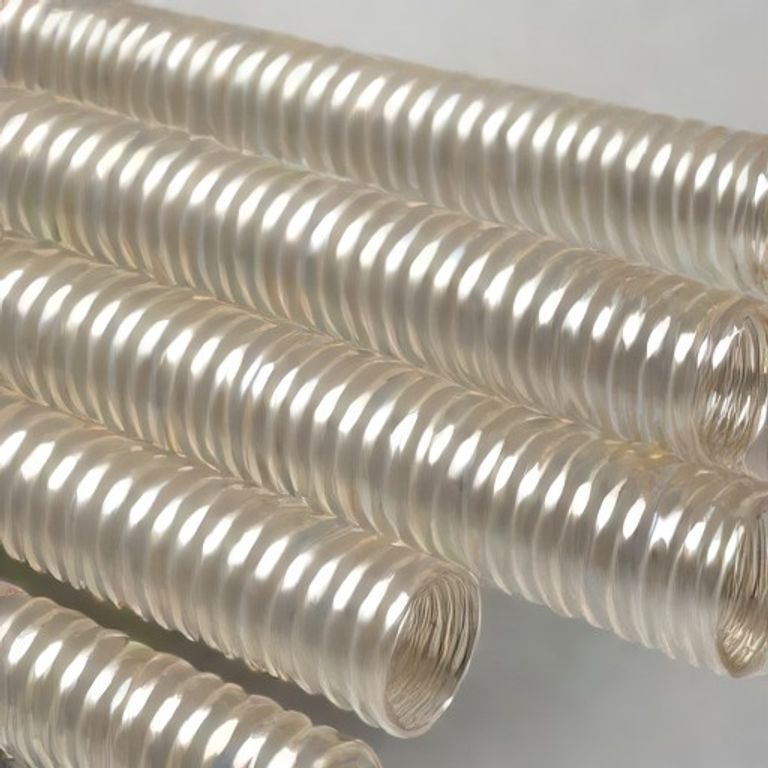

PU HOSE WITH COPPER WIRE

Application:For removal of dust collection equipment For CNC Machining Area For Abrasive Solids such as dust, powder, fibers etc For industrial air movement and Fume control

Material:Ester polyurethane with spring still wire

Standard Color:Transparent

Temp. Range:-42°C Approx. to + 90°C Approx.

Size:25mm to 355mm

Standard Length:15 Mtr

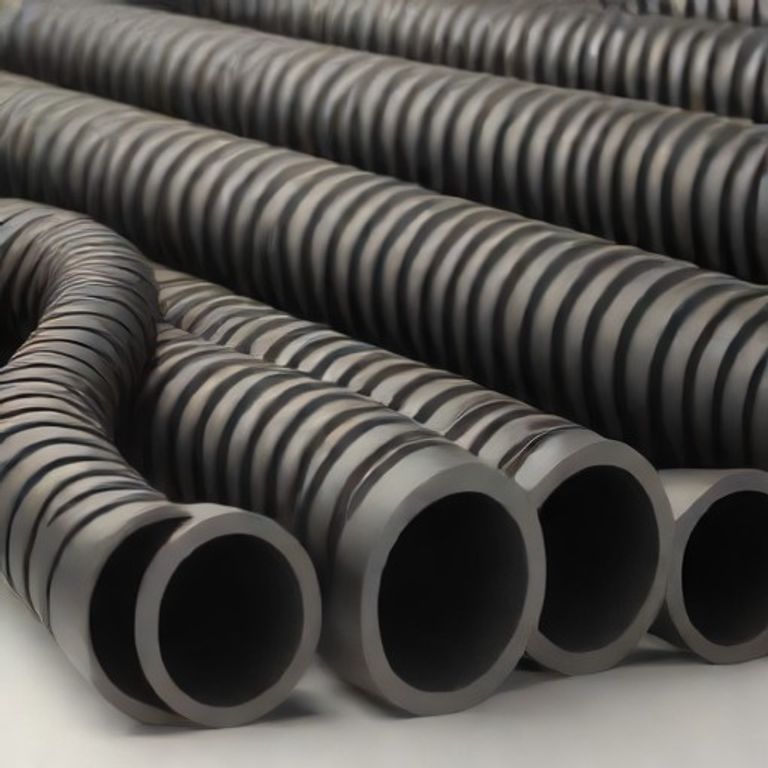

EVA HOSE / SWIMMING POOL HOSE / VACUUM CLEANER HOSE

Application:For Domestic and Industrial Vacuum Cleaners For Cleaning of Swimming Pools

Material:Eva

Standard Color:Black

Temp. Range:-45°C Approx. to + 65°C Approx.

Size:25mm to 50mm

Standard Length:20 Mtr

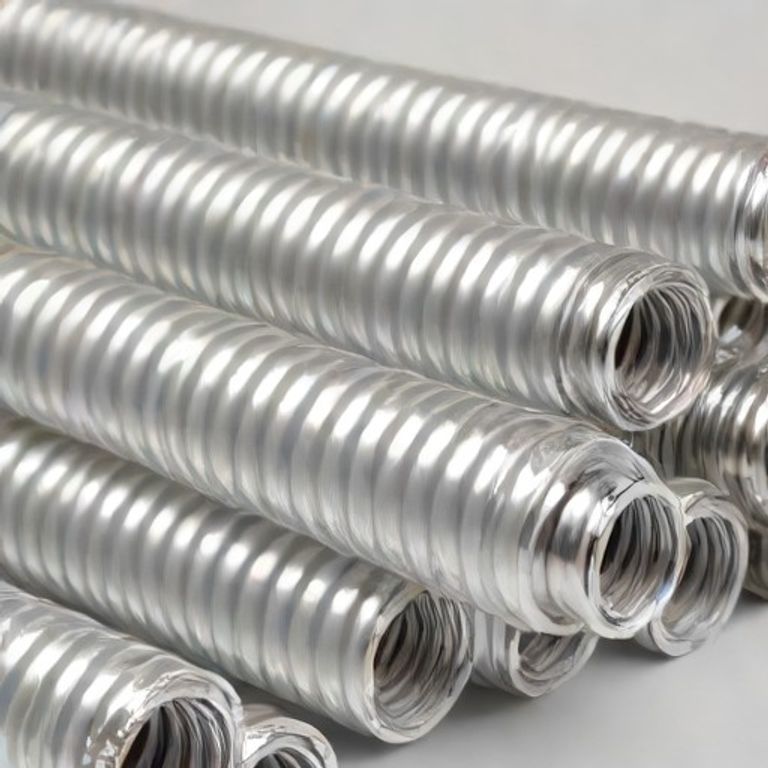

PVC TRANSPARENT ANTI STATIC STEEL WIRE HOSE

Application:Specially used for Conveying Gas, Liquid & Powder in Places easily Generating static change such as Buildings, Factories, Mine & Oil Storage.

Material:Shock Resistance Galvanised Steel Spiral wire & Straight Copper wire inserted

Standard Color:Transparent with Two Coloured line

Temp. Range:-5°C Approx. to + 65°C Approx.

Size:25mm to 75mm

Standard Length:30 Mtr

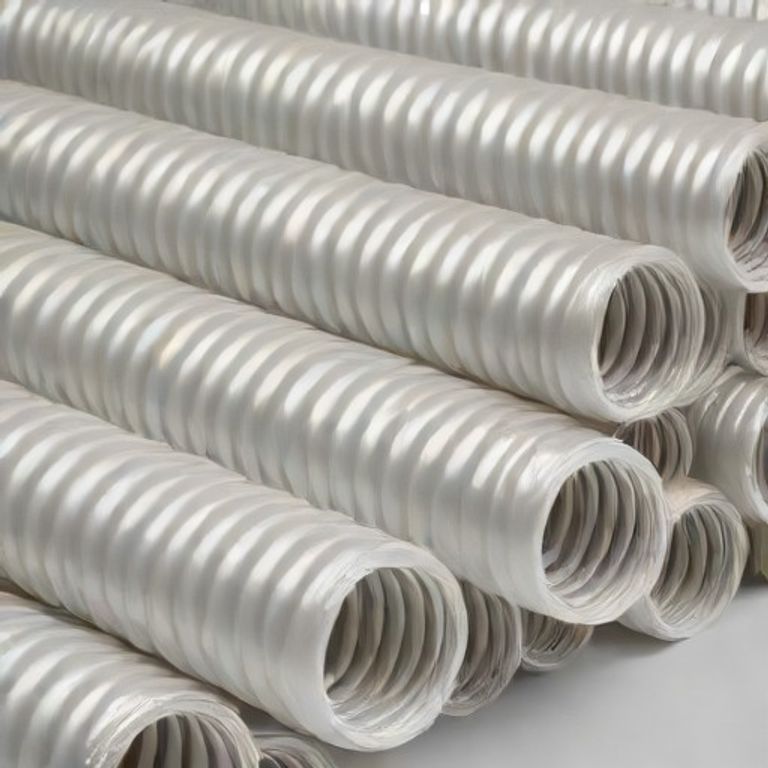

NON TOXIC FOOD GRADE FDA HIGH TEMPERATURE POLYESTER FIBER AND STEEL WIRE HOSE

Application:For Suction and delivery of Food Liquid, Fruit Juices, Beverages, Wine and Liquid For Suction and delivery of Powder and high abrasive granules To Convey Pharmaceuticals and cosmetic powders, pills and tablets of medicines To Convey Food, Flours and Grains, Sugar, Salt and Dry fruits

Material:Food Grade Plasticized PVC

Standard Color:Transparent

Temp. Range:-5°C Approx. to + 90°C Approx.

Size:25mm to 75mm

Standard Length:30 Mtr

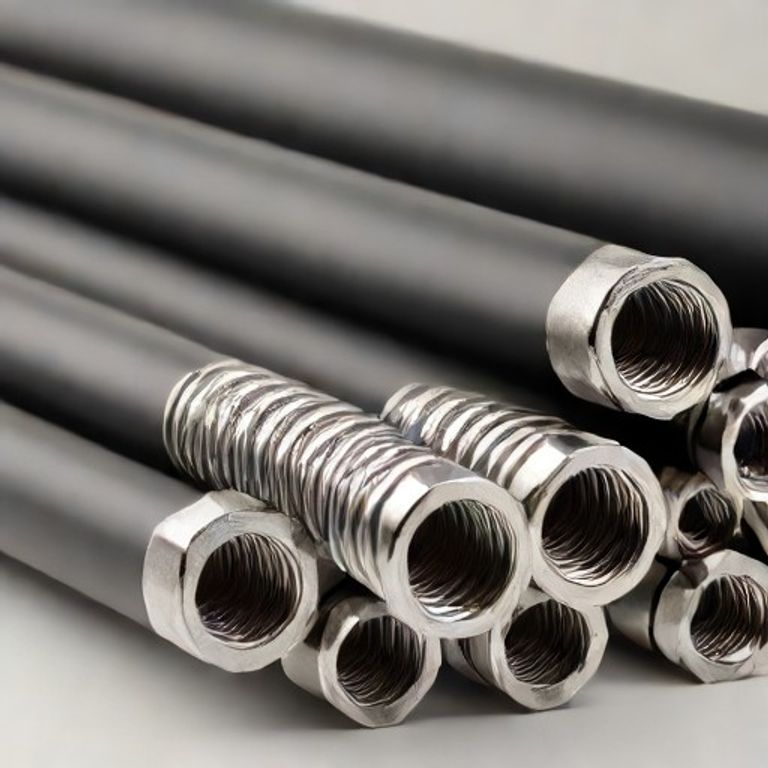

HYDRAULIC HOSES AND FITTINGS

Application:For High ,Medium Pressure Hydraulic Oil Lines, Fuel Oil, Gasoline, Water and air

Material:Black Oil Resistance Synthetic Rubber with High Tensile Steel Wire

Standard Color:Black

Temp. Range:-40°C Approx. to + 120°C Approx.

Size:6mm to 75mm

Standard Length:Customized

Pressure in R1:3263 to 508PSI | Pressure in R2: 5800 to 798PSI

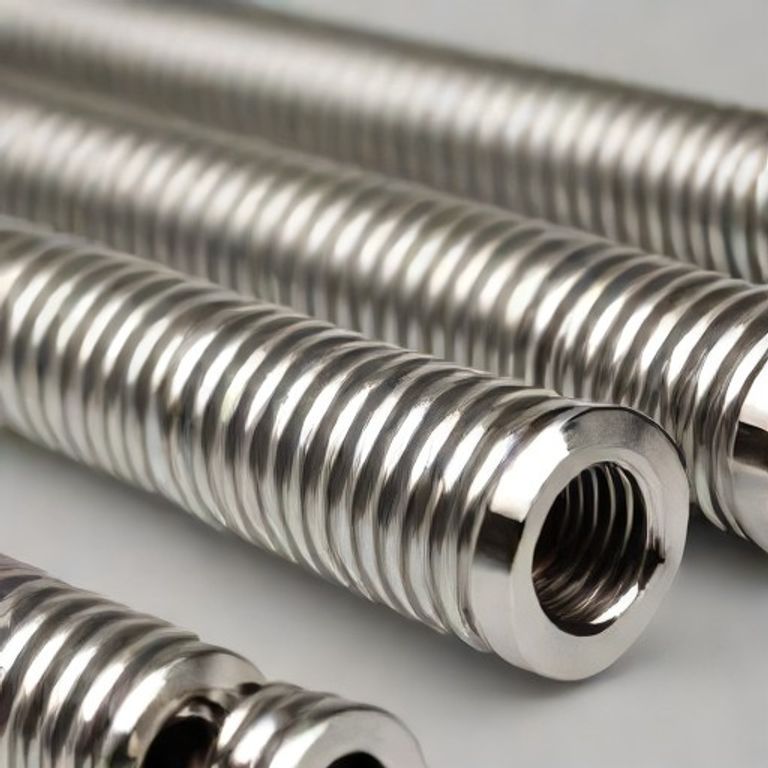

STAINLESS STEEL CORRUGATED HOSES AND FITTINGS

Application:SS Corrugated hoses are used where ever other conventional rubber or PTFE flexible hose can not be used, eg. High temperature hydraulic oils, steam, chemicals, corrosive liquids, gases, compressed air and pneumatic liner, cryogenic application, food and beverage, nuclear plants, chemical corrosive liquids, fluids associated with high temperature and of high pressure in paper plants, tyre moulds, air conditioning plants, textile machinery steam-conveying lines, power houses, oil refineries and toxic application etc

Material:Construction corrugated metal hose made with close pitch angular corrugation from butt-welded tube can be reinforced by one or two metallic wire braids (SS 304 and SS 316)

Standard Color:Silver

Temp. Range:-269°C Approx. to + 800°C Approx.

Size:6mm to 300mm

Standard Length:Customized

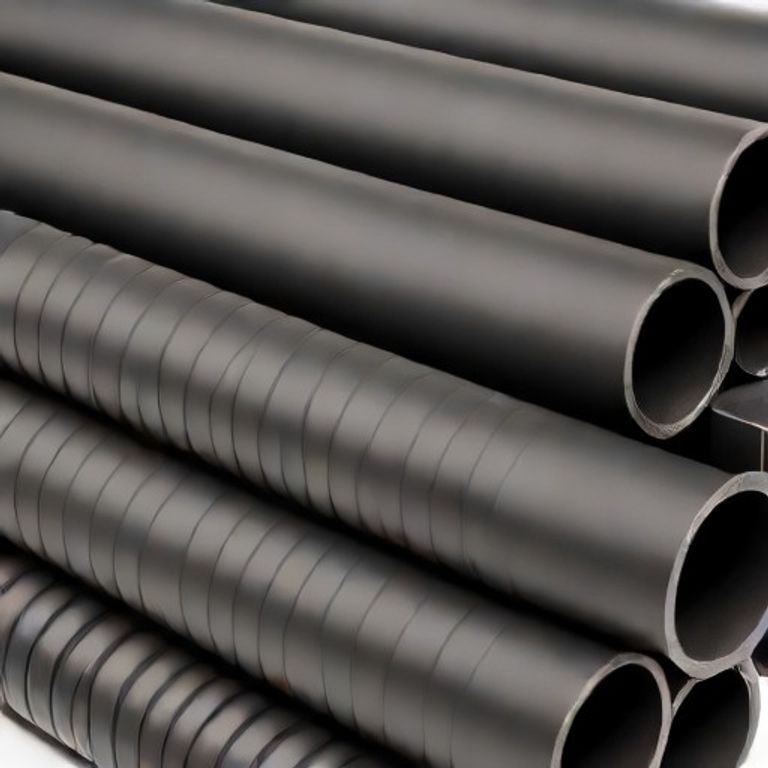

CHEMICAL HOSE

Application:Conveying dilute chemicals for ex. Caustic Soda, Dilute Sulphuric and Hydrochloric Acid

Material:Specially compounded EPDM with Synthetic yarn

Standard Color:Black

Temp. Range:-40°C Approx. to + 100°C Approx.

Size:20mm to 50mm

Standard Length:30mtr / 40mtr

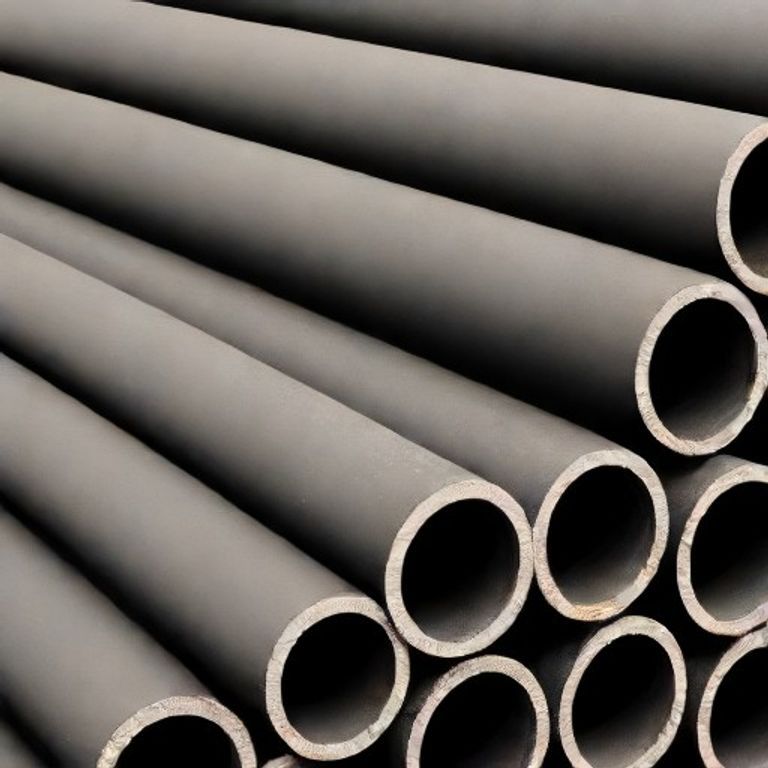

SAND BLAST HOSE

Application:Sand Shot Blasting Application and Carried for Abrasive Material at High Velocity

Material:Specially Compounded natural rubber

Standard Color:Black

Temp. Range:-40°C Approx. to + 75°C Approx.

Size:20mm to 50mm

Standard Length:30mtr / 40mtr

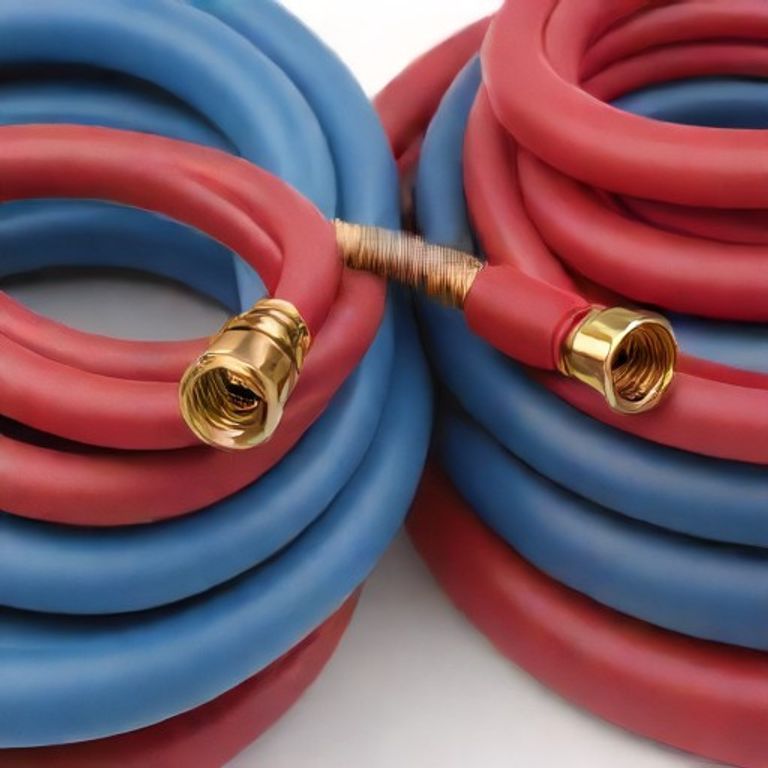

WELDING HOSE

Application:For use in Welding Application

Material:Specially Compounded natural rubber

Standard Color:Red and Blue

Temp. Range:40°C Approx. to + 70°C Approx.

Size:6mm to 10mm

Standard Length:100 mtr

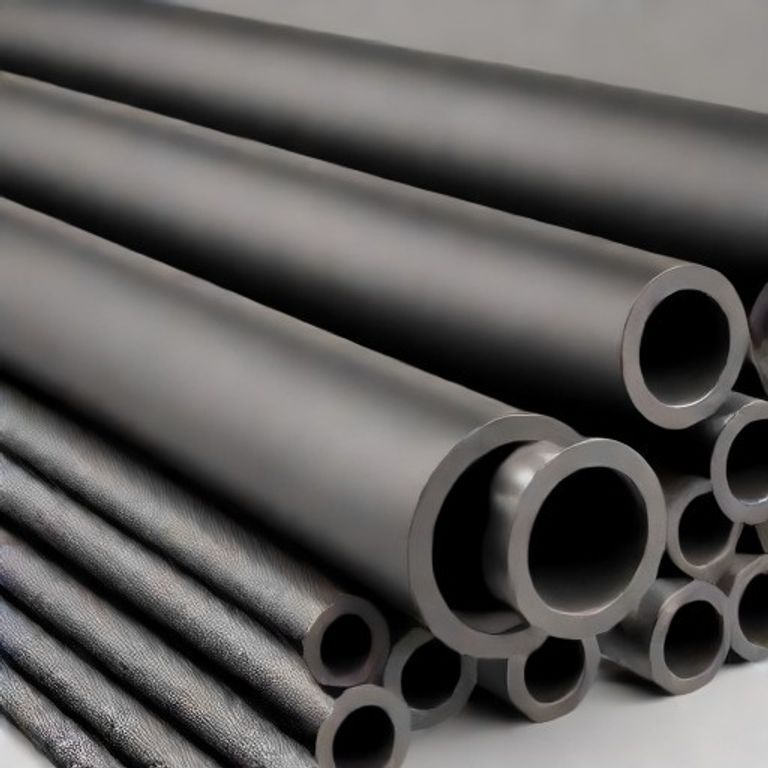

AIR/WATER/PNEUMATIC HOSE

Application:Use in Air, Water and Steam Application such as irrigation, shipyard workshop and engineering industries

Material:Specially compounded with Nitrile Rubber with Synthetic Yarn

Standard Color:Black

Temp. Range:32°C Approx. to + 82°C Approx.

Size:6mm to 50mm

Standard Length:30 Mtr / 40 Mtr

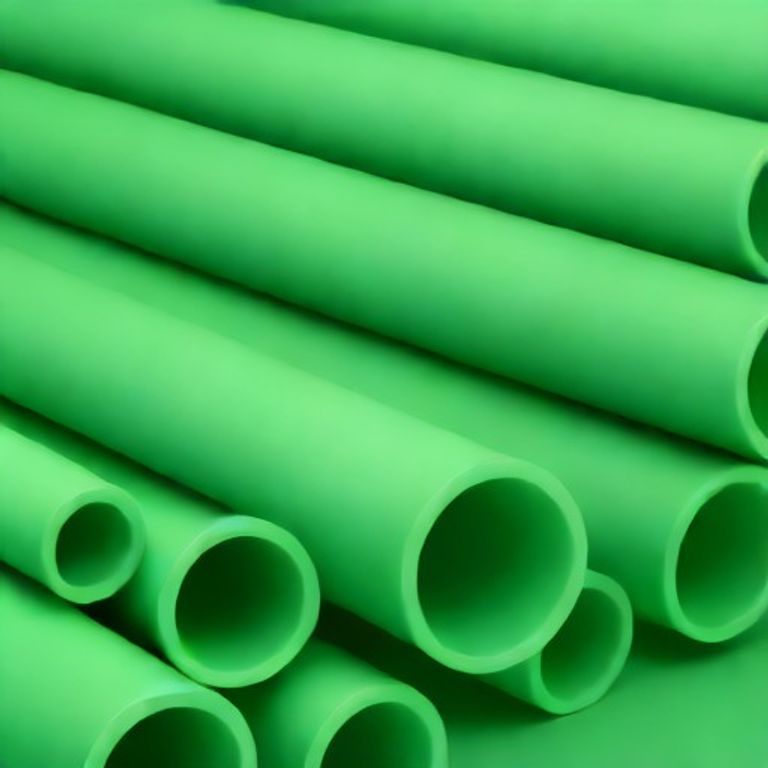

CARBON FREE HOSE

Application:Specialist for Furnace Coolant in Electrical Industry

Material:Compounded Synthetic Rubber with Synthetic Yarn

Standard Color:Green

Temp. Range:-40°C Approx. to + 95°C Approx.

Size:10mm to 100mm

Standard Length:30 Mtr / 40 Mtr

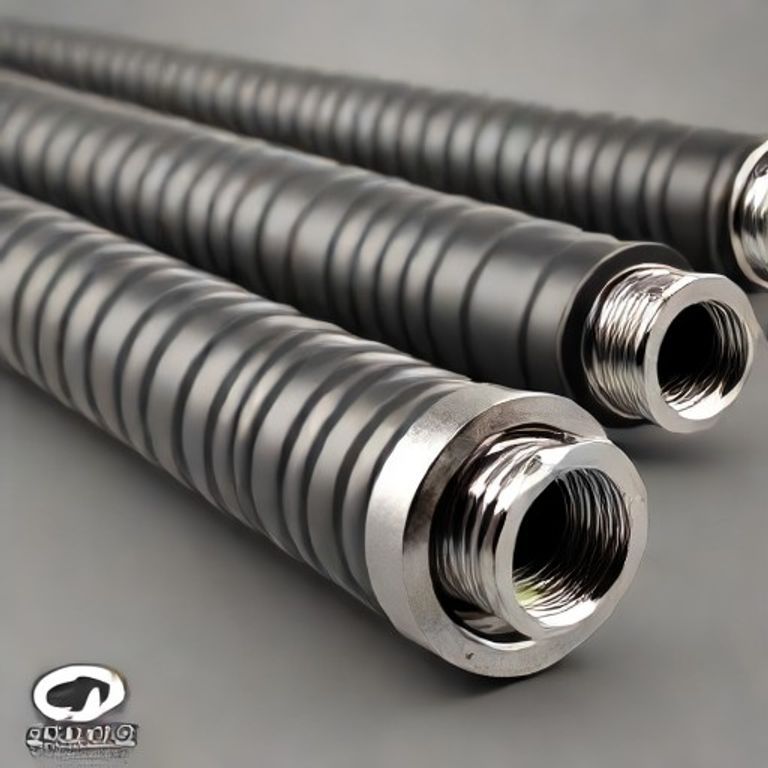

AIR DRILL BLACK HOSE

Application:Heavy Duty High Pressure on Industrial Construction, Mining Application

Material:Compounded Nitrile Rubber with High Tensile Steel Wire

Standard Color:Black

Temp. Range:-32°C Approx. to + 82°C Approx.

Size:20mm to 75mm

Standard Length:30 Mtr / 40 Mtr

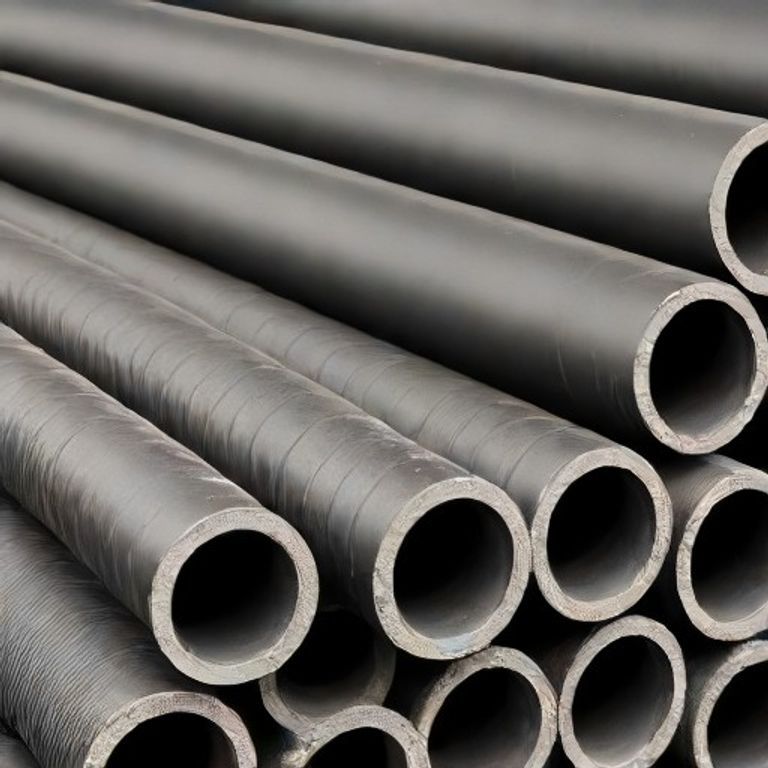

SLURRY SUCTION HOSE / DISCHARGE HOSE / CONCRETE TRANSFER HOSE

Application:To Handle of Pumping of Concrete with heavy pressure from concrete boom truck & Used for Heavy Duty water suction & discharge services

Material:Specially compounded Abrasion Resistance with Natural Rubber and Coating of High Tensile Steel Wire

Standard Color:Black

Temp. Range:-40°C Approx. to + 70°C Approx.

Size:75mm to 127mm

Standard Length:30 Mtr / 40 Mtr

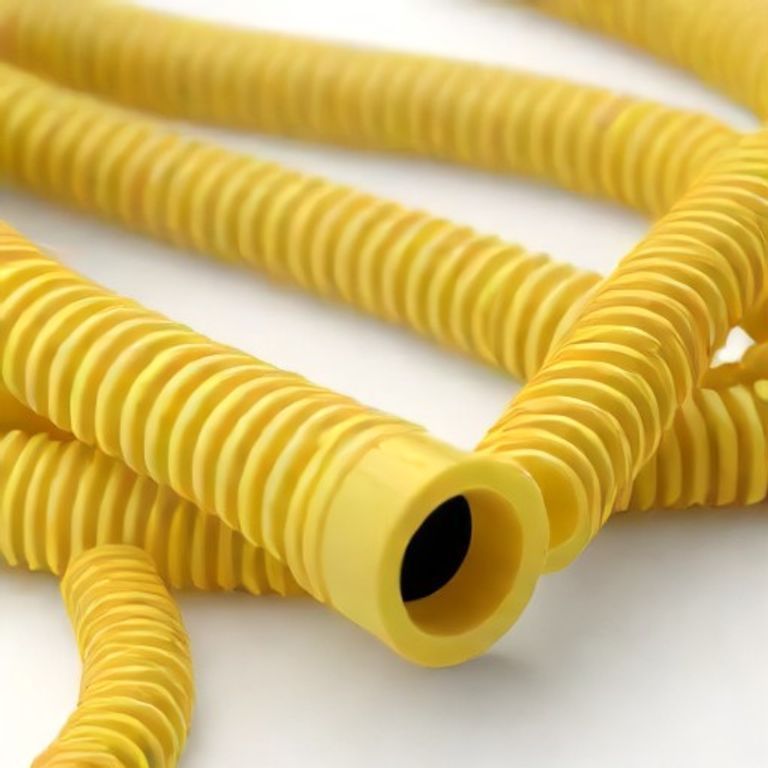

CAR WASHING HOSE PIPE

Application:For Washing of Motor Vehicle at Service Station

Material:Thermoplastic Elastomer

Standard Color:Yellow

Temp. Range:-40°C Approx. to + 70°C Approx.

Size:10mm to 12mm

Standard Length:30 Mtr / 50 Mtr / 100 Mtr

THUNDER HOSE /NON TOXIC FOOD GRADE STEEL WIRE PVC HOSE

Application:Suction and Discharge of Water, Mineral Water, Fruits, Juices etc
Use in shipyards/Industries/Buildings/ Agricultural / Pharmaceuticals Industrial Machineries

Material:Non Toxic Transparent Plasticized PVC with steel spiral wire

Standard Color:Transparent

Temp. Range:-5°C Approx. to + 55°C Approx.

Size:10mm to 150mm

Standard Length:20mtr / 30mtr / 50mtr

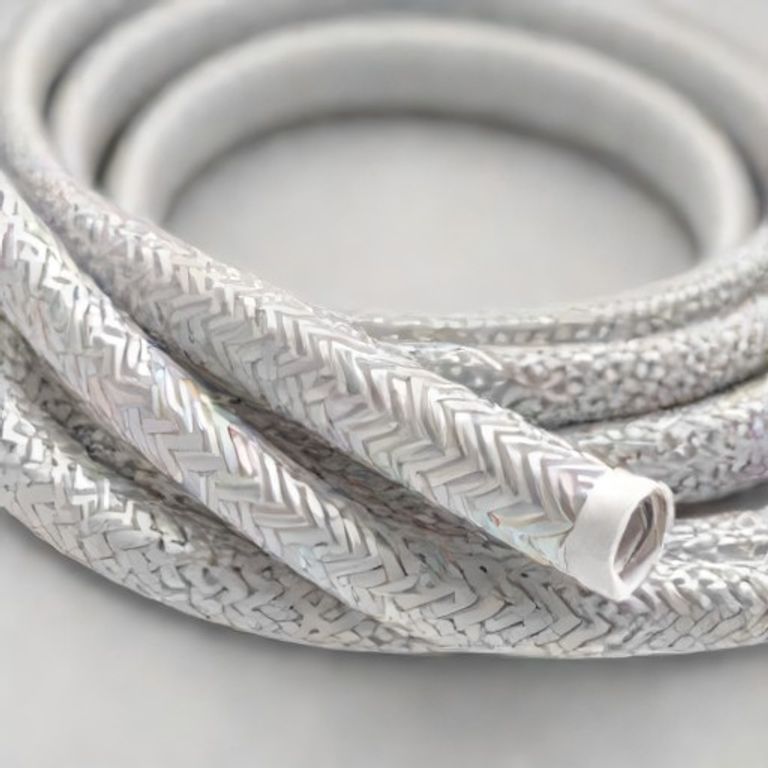

PVC NYLON BRAIDED HOSE

Application:Use In Pneumatic Air, Heavy Duty Suction and Delivery of water and chemicals

Material:PVC

Standard Color:Transparent

Temp. Range:up to +70°C

Size:6mm to 63mm

Standard Length:30mtr / 50mtr / 100mtr

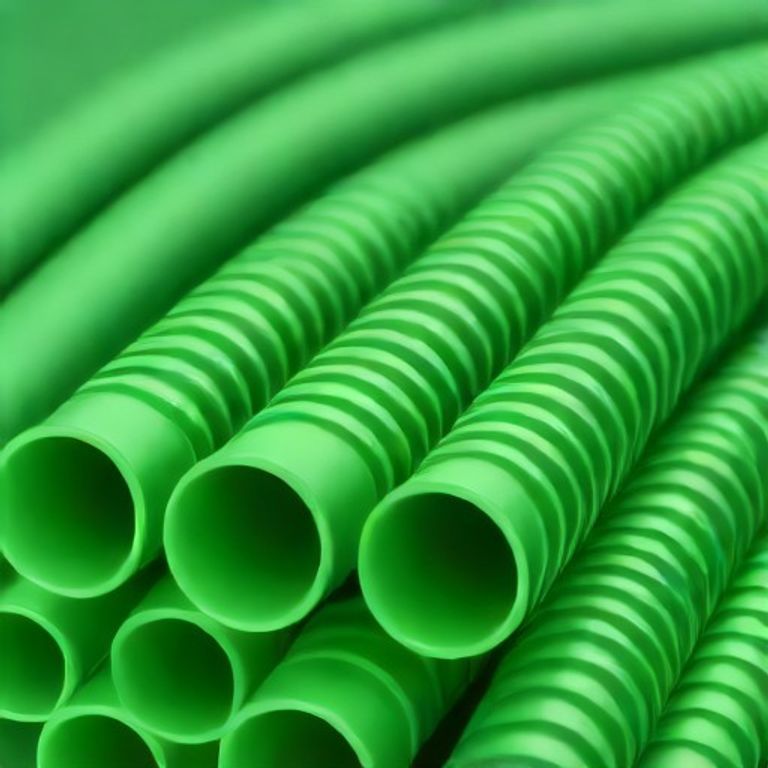

PVC SUCTION HOSE

Application:For Delivery of Water , Light Chemicals, Use in Agricultural, Industrial Applications and Construction

Material:PVC

Standard Color:Green / Orange and Parrot Radium / Transparent

Temp. Range:up to +70°C

Size:20mm to 150mm

Standard Length:15mtr / 30mtr

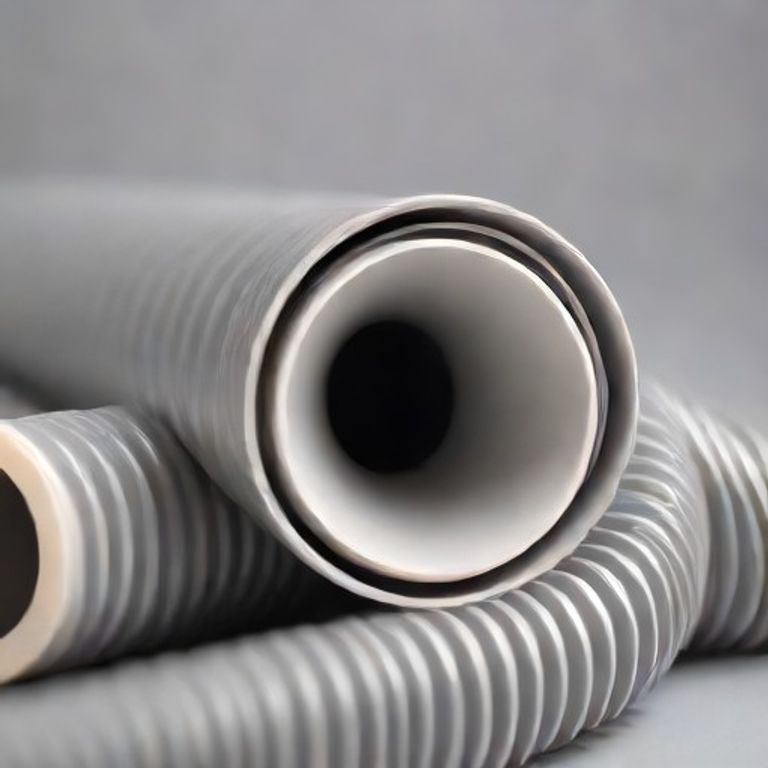

PVC FLEXIBLE DUCT HOSE PIPE

Application:For Dust and Powder Collection, Vacuum Cleaning

Material:PVC

Standard Color:Grey

Temp. Range:up to +70°C

Size:20mm to 250mm

Standard Length:30mtr / 15mtr / 10mtr

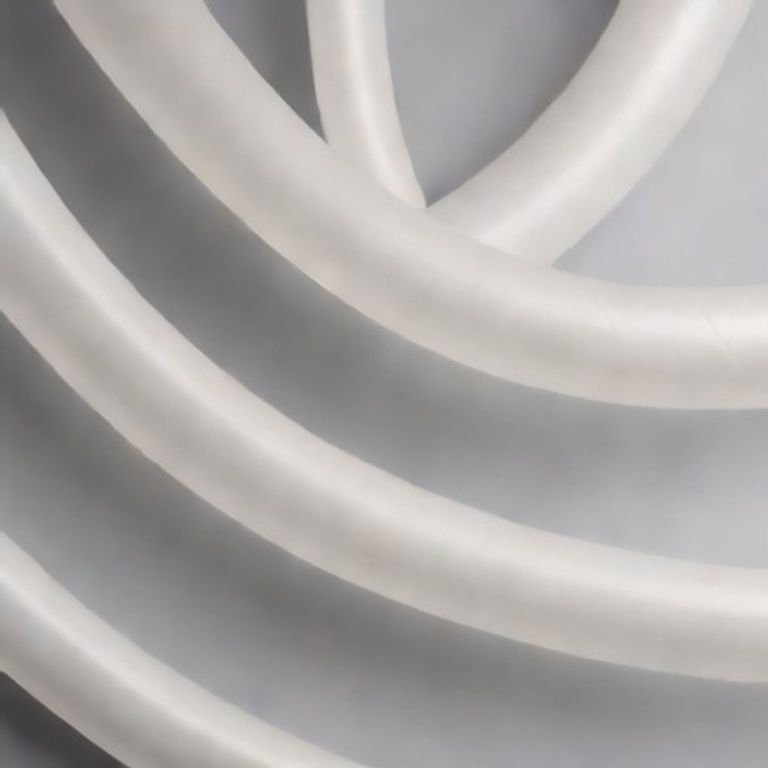

SILICON BRAIDED HOSE AND TUBING

Application:For Pharmaceutical Industries

Material:Silicon

Standard Color:White / Transparent / Red

Temp. Range:-72°C Approx. to + 260°C Approx

Size:4mm to 62mm

Standard Length:Customized

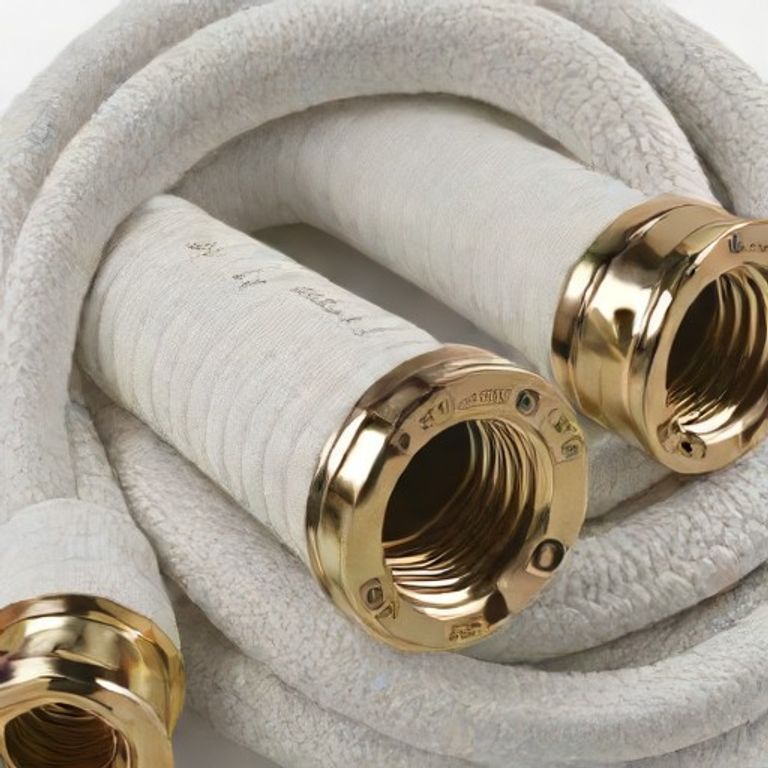

FIRE HOSE / RUBBER WATER HOSE / THERMOPLAST HOSE

Application:Use in Agriculture Projects, Mines and Dams, Used in Hose Reels for Fire Fighting applications

Standard Color:Red / White

Size:38mm to 70mm

Standard Length:7.5mtr / 15mtr / 22.5mtr / 30mtr

End Connection:As per Customer Requirement

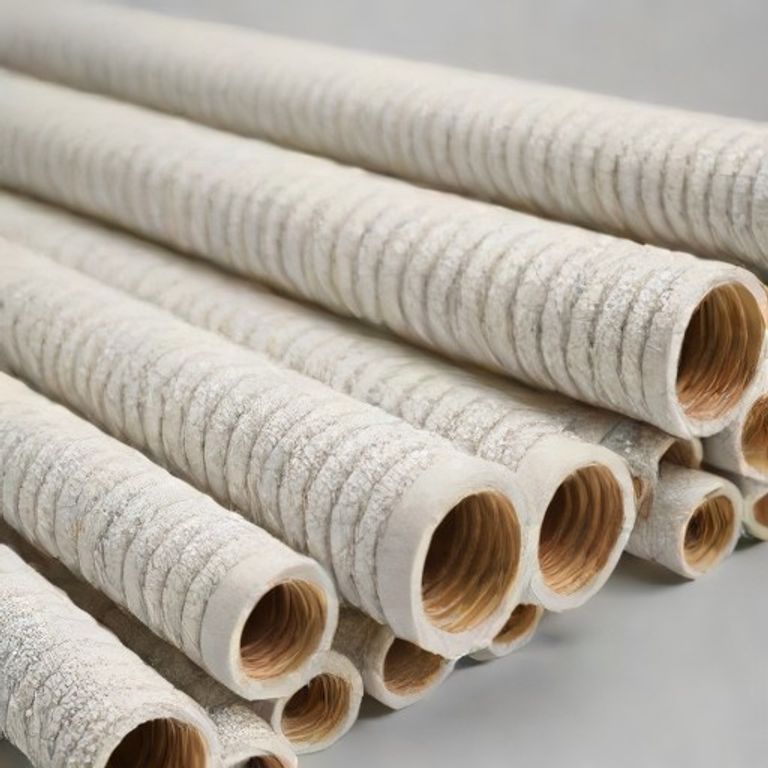

CANVAS HOSE

Application:Use for Drinking water, Utility water, Chemical Handling, Gas Handling, Delivery of water

Standard Color:White

Size:40mm to 150mm

Standard Length:30 mtr
